Removal of chemical and microbial water pollutants by cold plasma combined withAg/TiO2‑rGO nanoparticles

Abstract

This study aimed to investigate the synergistic effect of the cold atmospheric plasma (CAP) and heterogeneous photocatalytic processes in an aqueous solution to enhance water purification efficacy and reduce the energy cost required by CAP. 0.1% Ag/TiO2-reduced graphene oxide (rGO) nanoparticles (NPs) photo-composite were prepared and fully characterized. Data showed that Ag nanoparticles and the rGO play an important role in increasing the efficiency of the whole treatment process and the photo-composite (0.1% Ag/TiO2-1% rGO at 400 °C) revealed the highest phenol removal rate with excellent reusability. Also, complete inactivation (~ 5log10 reduction) of both E. coli and S. aureus by NPs was observed without CAP exposure, whereas a minimal effect (0.1–0.5 log10) on viruses (Adenovirus (AdV), rotavirus, and ɸX174) was observed after 10 min incubation. Interestingly, the photocatalytic virus inactivation test was promising, as it resulted in > 4.7log10 reduction of AdV at 2 min treatment, whereas < 1log10 could be reduced using only CAP at the same treatment time. Accordingly, we believe that this work could provide new insights into how the synergy between CAP and 0.1% Ag/TiO2-1% rGO photo-composite in aqueous media imposes a great potential for environmental applications, such as water purification and microbial inactivation.

Similar content being viewed by others

Introduction

There is a public health threat posed by water pollution due to chemical and pathogenic microorganisms in water. The cold (non-thermal) atmospheric plasma (CAP) is capable of producing high densities of reactive oxygen species (ROS) and reactive nitrogen species (RNS)1. These reactive oxygen and nitrogen species are generated because of the very energetic electrons in CAP, where electrons generate high densities of internally excited species (metastables) or radicals in inelastic electron-impact excitation and dissociation collisions, respectively. We have recently evaluated the efficacy of CAP in the removal of both chemical and microbial pollutants in water2. However, further enhancement of the water purification efficacy of CAP can be achieved by the synergistic action of plasma and photocatalytic processes which can also reduce the energy cost3,4,5.

A heterogeneous photo-oxidation process effectively using TiO2 for removal of organic water pollutants3,4,6,7 and disinfection5,7 was reported. Mainly, TiO2 is inexpensive and has been combined with plasma because it has a strong oxidation power, a reasonable bandgap, nontoxicity, and stability against photo- and chemical-corrosions8. However, TiO2 can be activated only in the UV part of the plasma spectrum. For instance, in the case of anatase TiO2, the bandgap is 3.2 eV, therefore UV light (λ ≤ 385 nm) is required for the activation process5. Therefore, improving TiO2 photocatalyst is necessary to invest in the visible region of the plasma spectrum and to increase the efficiency of the process as a whole (the optical emission spectrum of CAP is usually presented from approximately 300 nm to 800 nm with the major reactive species9. The enhancement of the photocatalytic activity of TiO2 photocatalyst is not only due to the modification of band energy but also due to the prolonged lifetime of free charge carriers (i.e., charge separation). Doping with noble metal nanoparticles (NPs) with surface plasmon resonance (SPR) such as Ag promotes the generation of electron–hole (e/h+) pairs, where the collective oscillation of free conduction electrons on the surface of Ag metal can facilitate the separation of electrons and holes generated on the surface of the TiO2 semiconductor10. In addition, it increases light scattering to capture a greater portion of light for coupled TiO2 semiconductors11. Recently, Ag/TiO2 composite was reported to have a high separation rate of electron and hole, which enhanced the degradation of phenol when combined with CAP12.

On the other hand, Ag NPs have antimicrobial activity and biocompatibility nanomaterials and have been used for water disinfection13. The physically perturbing action of Ag NPs induces oxidative stress, disrupting a microbial process via the oxidization of one of the components of the cell membrane, or a disruption of a process that takes place inside the cell14. TiO2 has caught the attention of many researchers due to its ability to inactivate a wide variety of viruses15,16. However, doping of TiO2 with Ag NPs was used to enhance the antimicrobial activity due to their synergistic effect17.

In addition, the role of reduced graphene oxide (rGO) in the enhancement of TiO2 photocatalytic activity was studied before8,11,18. The improvement of the photocatalytic activity is mainly due to decreasing the recombination of e/h+ pairs of TiO2 via withdrawing the excited electrons by the π-π bond in rGO19,20. Moreover, rGO shifts the TiO2 excitation range into the visible region8,19,20.

While the photocatalytic activity of Ag/TiO2-rGO photo-composite in the presence of light was covered elsewhere11,13,18,21, to the best of our knowledge the combination and activation of this composite with CAP source and its antimicrobial activity were not investigated to date. Thus, this study addresses this scientific research gap. In this work, the synergism between the CAP and Ag/TiO2-rGO photo-composite for chemical and microbial removal from aqueous media was investigated. Phenol was used as a model of water organic micropollutant compound. In order to study the photocatalytic microbial inactivation capabilities of 0.1% Ag/TiO2-1% rGO photo-composite, E. coli and S. aureus were used as a model of Gram-negative and Gram-positive bacteria; respectively. Since enteric viruses are relatively more resistant to water disinfection compared to bacteria, the effect of CAP and 0.1% Ag/TiO2-1% rGO on adenovirus (AdV), rotavirus (RoV), and ɸX174 was also explored. Besides, the mechanism of the main formed reactive species through this process with their contribution to the chemical and microbial removal was suggested using radical scavengers.

Results and discussion

Characteristics of the prepared photocatalysts

The phase composition of prepared nano-materials was identified by XRD. Figure 1a demonstrated the XRD diffraction pattern for 0.1%Ag/TiO2-1%rGO at different calcination temperatures (300 °C, 400 °C and, 500 °C for 2 h). All samples at different calcination temperatures have diffraction patterns at 2 θ of 25.325°, 37.841°, 48.074°, 53.952°, and 55.106° equivalent well with JCPDS card No. 84–1286. It should be noted that all samples showed only the distinctive diffraction patterns of TiO2 due to the low content of Ag NPs and rGO sheets according to the amount of TiO2. Also, an insufficient number of planes for the production of clear XRD patterns, or the low intensity of single rGO or Ag are in agreement with8,22. Therefore, Raman spectroscopy was used to prove the presence of rGO in the prepared photo-composite. On the other hand, the average grain crystal size was calculated according to Scherrer Equation23. The average grain crystal size was 6.7, 10.5, and 12.5 nm for samples that were calcinated at 300 °C, 400 °C, and 500 °C, respectively.

Figure 1
figure 1

(a) XRD pattern, (b) Raman spectra of 0.1%Ag/TiO2-1%rGO at different calcination temperatures. (c, d) HR-TEM images of 0.1%Ag/TiO2-1%rGO at 400 °C for 2 h.

In Fig. 1b, the Raman spectra of GO and 0.1%Ag/TiO2-1%rGO at calcination temperatures of 300 °C and 400 °C are shown. For the photo-composite, distinct bands of anatase TiO2 appeared at 148 cm−1, 397 cm−1, 514 cm−1, and 638 cm−1. These bands are associated with the Eg optical Raman mode, B1g, A1g, and Eg Raman modes of anatase TiO2, respectively. In addition, in Fig. 1b (inset (a)), the TiO2 anatase Eg mode was also observed to shift from 144 cm−1 (pure TiO2) to 148 cm−1 (0.1%Ag/TiO2-1%rGO) owing to the interaction of the metal atoms in TiO2 with the rGO sheets. This behavior was observed also by24.

Also, D and G bands that are characteristic of GO and rGO are presented with samples of pure GO and 0.1%Ag/TiO2-1%rGO calcinated at 300 °C and 400 °C (see Fig. 1b inset (b)). These bands are assigned to disorder carbon (D band) and sp2 hybridized carbon (G band). D-bands appeared at 1351 cm−1, 1363 cm−1, and 1351 cm−1, while G bands at 1584 cm−1, 1584 cm−1, and 1577 cm−1 for pure GO, 0.1%Ag/TiO2-1%rGO calcinated at 300 °C and 0.1%Ag/TiO2-1%rGO calcinated at 400 °C, respectively. There is a marginal shift 7 cm−1 to a lower frequency at 1577 cm−1 (0.1%Ag/TiO2-1%rGO calcinated at 400 °C) from 1584 cm−1 (pure GO), while there is no shift in the case of the photo-composite calcinated at 300 °C. This confirms the charge transfer between TiO2 and rGO when the calcination temperature increases to 400 °C18. Therefore, it is expected to find a better photocatalytic performance of the photo-composite that was calcinated at 400 °C compared to that calcinated at 300 °C. This phenomenon will be clarified later in the photocatalytic performance section. The intensity ratio ID/IG is 1.01, 0.87, and 0.73 for pure GO, 0.1%Ag/TiO2-1%rGO calcinated at 300 °C, and 400 °C, respectively. This is due to deoxygenated of the GO group at 300 °C and 400 °C and reconstructed π–π conjugated structure in rGO. So that, the decrease in the intensity ratio of ID/IG is due to the reduction of GO to rGO8,25. Also, no Raman peaks for Ag were showed due to the crystal symmetry of Ag.

The morphology of the photo-composite (0.1%Ag/TiO2-1%rGO at 400 °C for 2h) was demonstrated by HR-TEM (Fig. 1c, d). There is a good distribution of Ag/TiO2 particles over the rGO sheets (Fig. 1c). The selected area electron diffraction (SAED) in the inset of Fig. 1c shows clear circle dots, which indicates that the photo-composite (0.1%Ag/TiO2-1%rGO at 400 °C for 2h) is polycrystalline in nature24. The SAED ring dot is corresponding to (1 0 1), (0 0 4), and (2 2 0) planes of TiO2 anatase, which is in agreement with the XRD pattern (see Fig. 1a). The d-spacing of Ag and TiO2 lattice crystal are demonstrated in Fig. 1d.

The optical properties of the prepared photo-composites were identified by UV–Vis DRS. The UV–Vis absorption spectra of TiO2, rGO, 0.1% Ag/TiO2, and 0.1% Ag/TiO2-1% rGO are presented in Fig. 2a. As appeared in Fig. 2a, the absorption of TiO2 is below 400 nm wavelength. There is a little increase in the absorption at  wavelengths longer than 400 nm by adding Ag particles to the TiO2. This is due to the effect of incorporation of metallic Ag nanoparticles with TiO2, which gives a strong localized surface plasmon resonance (LSPR)26. This phenomenon will enhance the photocatalytic performance of TiO2 photocatalyst, by decreasing the recombination rate of photo-excited e/h+ pairs. On the other hand, the pure rGO has the highest absorption within the spectrum region. Therefore, the 0.1% Ag/TiO2-1% rGO photo-composite exhibits light absorption not only in the UV range but also in the visible light range and the change in light absorption properties is mainly due to the presence of 1% rGO. Hence, the photo-composite can absorb all light spectrum introduced by CAP, which increases its reactivity and hence its efficiency for water treatment together with CAP.

Figure 2
figure 2

(a) UV–Vis absorption spectra and (b) PL spectra of the prepared materials (calcinated at 400 °C for 2h) .

Figure 2b shows the PL spectra of TiO2, 0.1% Ag/TiO2, and 0.1% Ag/TiO2-1%rGO. The pure TiO2 has the highest broadband emission intensity from 350–500 nm. This is due to the high e/h+ pairs recombination rate. This broadband emission intensity was decreased in the case of 0.1% Ag/TiO2 as the metallic Ag NPs incorporate in TiO2 decreased the e/h+ pairs recombination rate. The rGO in the photo-composite (0.1% Ag/TiO2-1%rGO) decreases the broadband emission intensity because it can consume the excited electrons by its π-π bonds. This leads to the highest photocatalytic activity as the rate of e/h+ pairs recombination is the lowest. This is supporting to the high photocatalytic activity of the prepared photo-composites in the photocatalytic performance section.

Characteristics of CAP

The plasma reactor, as shown in Fig. 3a, consists of an AC high voltage power supply with input voltage ranging from 0 to 18 V and output voltage up to 10 kV, where its positive terminal was connected to the point electrode (above the water surface), while its negative terminal was connected to the metal electrode (platinum) immersed in the treated liquid. All the treatments were performed at optimum operating conditions, which were reached in previous work, at plasma voltage 3 kV peak-to-peak and plasma current 1550 μA (approximately), gap distance of 1 mm, and water thickness of 3.6 mm (see Fig. 3b, c), more details of the system can be found at2.

Figure 3
figure 3

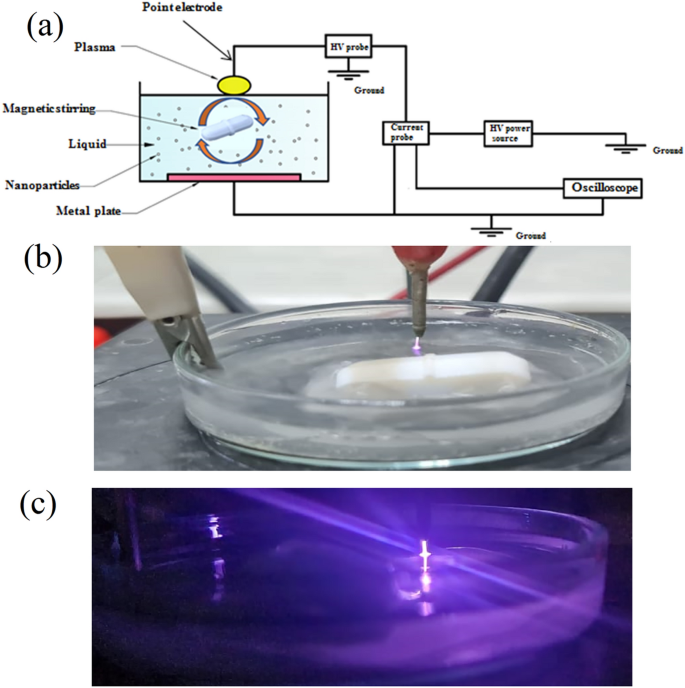

(a) Scheme of the plasma reactor used for water treatment. (b) A photograph of CAP source (point electrode) during water treatment. (c) A photograph of the electrical discharge plasma in dark.

The optical emission spectrum (OES) of CAP above phenol was measured during the treatment (see Fig. 4a). Most of the observed lines are in the near-UV region as a result of molecular nitrogen bands (N2), nitrogen molecular ions (N2+), and OH excited species emissions, where N2 can be observed from 306 to 380 nm, N2+ can also be seen from 391 to 470 nm, and OH band between 306 and 317 nm was observed. Moreover, O atoms can be noted at 377 nm27,28,29,30. From the plasma OES, it was found that RNS can be formed in the gas phase and would be introduced to the plasma-activated medium. Therefore, the formed nitrates at 15 min in the CAP-0.1% Ag/TiO2-1%rGO system were 88.7 mg/L and the nitrites were below the detection limit (< 0.001 mg/L) due to the fast conversion to nitrates within this reaction period31.

Figure 4
figure 4

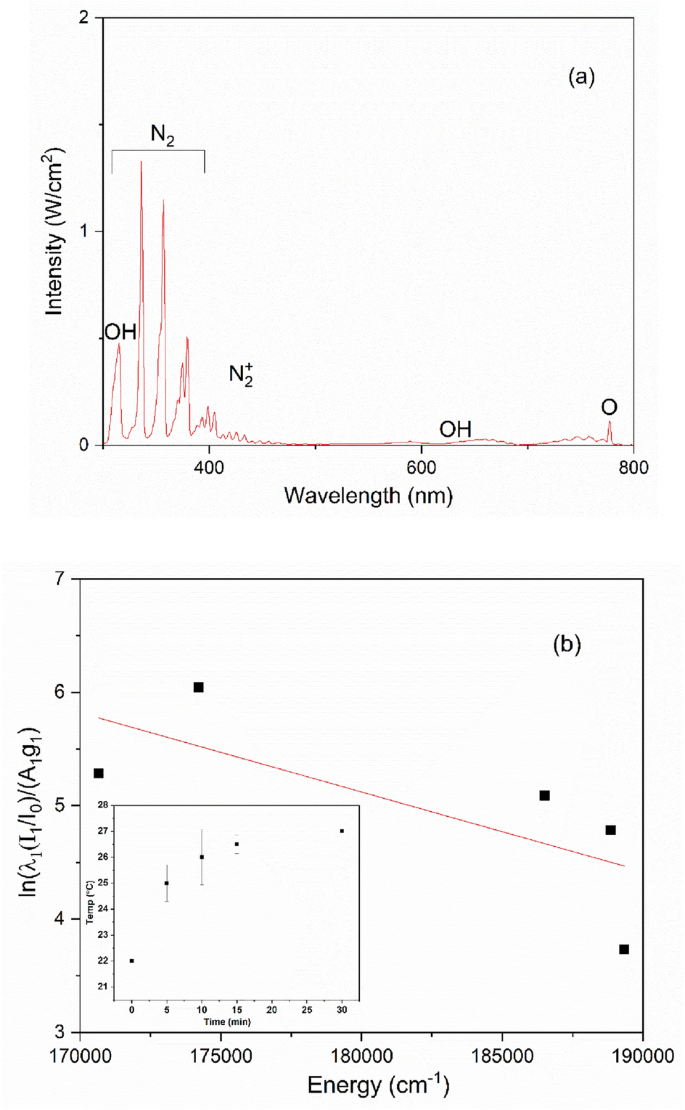

(a) Optical emission spectrum of CAP above phenol during the treatment of phenol. (b) Boltzmann plot used for estimating electron temperature of the plasma and inset shows the temperature of solution.

The Boltzmann plot method is used to estimate the plasma electron temperature of our source through the emission spectra of N2+. The Boltzmann plot utilizes several emission lines to get a good estimation of electron temperature. Therefore, the plasma electron temperature can be measured from the following equation:

log⁡((𝐼𝑛𝑚(2)/𝐼𝑛𝑚(1))/𝜆𝑛𝑚𝑔𝑚(2)𝐴𝑛𝑚(2))=−0.625𝑇𝐸(2)+𝐶,
(1)

where 𝐼𝑛𝑚(1) is the emission intensity of the first line (which is selected as a base), 𝐼𝑛𝑚(2) is the emission intensity of the emitted upper level, 𝑔𝑚(2) is the statistical weight of the upper level of the transition, 𝐴𝑛𝑚(2) is the atomic transition probability, 𝜆𝑛𝑚 is the wavelength of the emitted upper level (nm), 𝐸(2) is the excitation energy of the emitted upper level (cm-1), T is the electron temperature (°K), and C is a constant32,33,34,35. Using this method, five spectral lines of N II were chosen from the spectral lines to determine the electron temperature (see Table S1 in the supporting information (SI)). Figure 4b shows the Boltzmann plot of the above equation with E on the horizontal axis and ln⁡((𝐼1/𝐼0)/𝜆𝑛𝑚𝐴1𝑔1) on the vertical axis. The electron temperature was calculated from the slope of the fitted line and it was about 6191 (°K), this temperature (measured at plasma voltage 3 kV peak-to-peak) is in the normal range of electron temperature of CAP32,36,37. Although the electrons are very energetic as we can see, the heavy particles would be at the room temperature and this is one of the most important advantages of CAP, which make it also suitable for many biomedical application31. The temperature of the treated solution was also measured during the whole treatment time with minimal change (≈5 °C) as shown in inset of Fig. 4b.

Photocatalytic/CAP performance and phenol degradation

The reaction kinetics of the combination of CAP with Ag/TiO2-rGO photo-composite demonstrates the rate of phenol removal. The degradation of phenol was described by the following rate equation:

−𝑑[𝑃ℎ]𝑑𝑡=𝑘𝑎𝑝𝑝[𝑃ℎ],
(2)

where 𝑘𝑎𝑝𝑝 (𝑚𝑖𝑛−1) is the apparent rate constant for the degradation of phenol, [Ph] is the concentration of phenol, and 𝑡 (min) is the treatment time. The nonlinear curve fitting shows that the order of the reaction kinetics is 1st order as 𝑅2 close to unity (Fig. 5b). Figure 5a presents the effect of the rGO ratio on phenol removal. It presented the apparent rate constants 𝑘𝑎𝑝𝑝(𝑚𝑖𝑛−1) of phenol degradation by CAP with different photocatalysts. The 𝑘𝑎𝑝𝑝 of phenol in the case of CAP in the presence of photocatalysts is mainly higher than in the case of CAP only. The nano-hybrid photocatalyst that loaded with 1% wt rGO has the highest 𝑘𝑎𝑝𝑝. Figure 5a shows that the rGO has a synergistic effect with Ag and TiO2, this effect enhances the photocatalytic performance of Ag/TiO2 composite. This is attributed to the formation of a hybrid system that prolonged the lifetime of 𝑒− and ℎ+ followed by decreasing the charge separation rate. This enhances the formation of oxidative radicals and increases the phenol rate of degradation. rGO is also shifted TiO2 to redshift (as mentioned before), consequently, TiO2 has absorbed the whole light spectrum that generates from CAP. Increasing the ratio of rGO in the photo-composite led to smaller values of 𝑘𝑎𝑝𝑝 when compared to rGO (1 wt%)-TiO2. This behavior may be attributed to the stacking of rGO nanosheets when their loading is increased, which decreases the light interaction with nano-composite. Moreover, composites with rGO loadings above 1 wt% should display a highly negatively charged surface, which could decrease the separation of the photo-generated 𝑒−ℎ+ pairs and also result in a fast recombination rate of these charge carriers which consistent with38. Based on these results, it appears that 1 wt% is the optimal loading of rGO to obtain a close 0.1% Ag/TiO2-rGO interfacial contact, leading to both an effective activation of TiO2 by CAP radiation and an enhanced charge transfer between rGO and 0.1% Ag/TiO2.

Figure 5
figure 5

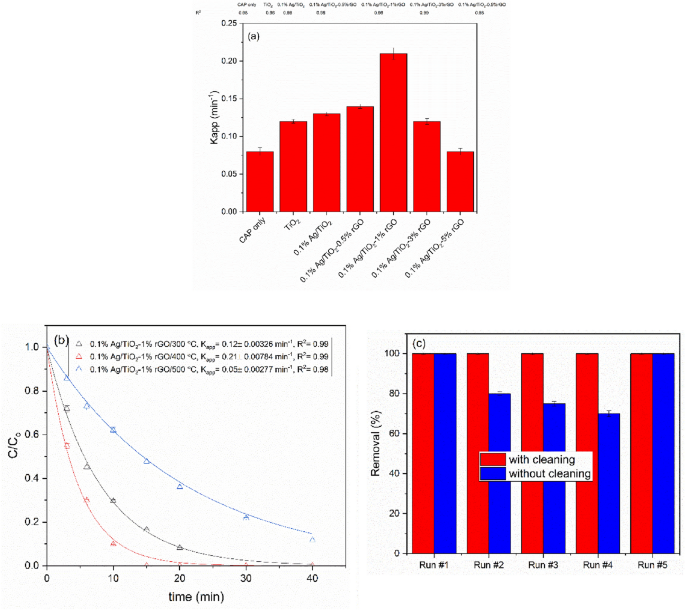

(a) The apparent rate constants of phenol degradation by CAP with photo-composite of different rGO ratios (calcinated at 400 °C for 2h). (b) Degradation of phenol by CAP in the presence of Ag/TiO2-rGO at different calcination temperatures. Solid lines represent the nonlinear curve fittings using the equation of 1st order kinetics. (c) Performance of 0.1% Ag/TiO2-1%rGO (calcined at 400 °C for 2 h) photo-composite in the presence of CAP on the reuse experiments.

Figure 5b shows the effect of calcination temperature (300 °C, 400 °C, and 500 °C) of 0.1% Ag/TiO2-1% rGO on phenol removal. The photo-composite (0.1% Ag/TiO2-1% rGO at 400 °C) has the highest removal rate due to the more reduction of GO at this temperature and shifting to the G band in Raman (see Fig. 1b, inset b). This leads to an increase in charge transfer between TiO2 and rGO and consequently the charge separation is increased and the recombination rate of 𝑒−/ℎ+ pairs is decreased. On the other hand, the lowest removal rate in the case of calcination temperature of 500 °C could be due to the growth in grain crystal size of TiO2 (see XRD section), which decreases the surface area of the photo-composite and the active sites that generate 𝑒−/ℎ+ pairs.

Reusing this photo-composite in the presence of CAP is an important issue for practical application in any future water treatment and an advantage making the treatment process cost-effective. Figure 5c shows the use of 0.1% Ag/TiO2-1%rGO (calcined at 400 °C for 2 h) for the degradation of different solutions of phenol several times. The photo-composite was recovered after each run by settling the photo-composite and decantation the treated water. The degradation efficiency of phenol (in terms of removal percentage at 30 min) was decreased to about 65% for up to four consecutive runs without cleaning the photo-composite. The removal of phenol increased back to about 100% at the fifth run after cleaning the photo-composite with distilled water and using it again. This can be due to blocking of some photo-composite active sites through adsorption of phenol byproducts, which decreases the number of generated 𝑒−/ℎ+ pairs. These findings are in agreement with39. Insignificant change in the degradation efficiency of phenol was observed for up to five consecutive runs with cleaning the photo-composite between each use, indicating that photo-composite can conserve its photocatalytic efficiency and stability in the presence of CAP for a long time. Herewith, it is a promising stable photo-composite for long-term practical application with the CAP process.

Microbial removal

In Vitro antimicrobial assay of 0.1% Ag/TiO2-1% rGO nanocomposite

The inhibition zone diameters were measured around the saturated discs by the synthesized 0.1% Ag/TiO2-1% rGO nanocomposite which was prepared at three temperatures (300 °C, 400 °C, and 500 °C) against different microbial pathogens (Figure S1 in the SI). The results exhibited that the prepared 0.1% Ag/TiO2-1% rGO nanocomposite at three temperatures has a potent antimicrobial effect against Gram-negative bacteria (E. coliSalmonella Typhimurium and Pseudomonas aeruginosa) and Gram-positive bacteria (Listeria monocytogenesStaphylococcus aureusEnterococcus faecalis and Bacillus subtilis) and also against Candida albicans as a fungal strain. The inhibition zone diameters were slightly high with the prepared 0.1% Ag/TiO2-1% rGO composite at 500 °C against Enterococcus faecalis (13 mm), Listeria monocytogenes (12 mm), and Candida albicans (12 mm). TiO2 nanocomposites have been shown to exhibit antibacterial effects and effectively work in light and dark conditions for multipurpose environmental applications. Whereas, the inhibition effect of TiO2 NPs for the inactivation of microorganisms under dark conditions depends on the shape, size, and orientation of the nanocrystals40. The bacterial inactivation revealed electrons transfer from the bacterial membrane to the TiO2 surface followed by the interface due to the Schottky barrier effect41.

Effect of Ag/TiO2-rGO nanocomposite and non-thermal plasma on bacterial strains

According to the bacterial inactivation results, it was not possible to determine the synergistic effect between CAP and NPs as complete inactivation (5log10 reduction) of both E. coli and S. aureus by NP under dark conditions (no CAP exposure) was observed (Table S2 in SI). However, we found that brief exposure to CAP promotes a rapid loss of cell membrane integrity (see Fig. 6a, b). Since CAP comprises both (V)UV and particles, it produces the most diverse stress on the cell and its components due to physical synergy reactions between (V)UV photons and particles. Despite the fact that UV radiation is the primary disinfection element in plasma disinfection, its direct effects on microbial cells are rather limited due to a lack of penetration42. Also, the antibacterial effect of 0.1% Ag/TiO2-1% rGO nanocomposite under dark conditions was further examined using TEM Fig. 6c, where incubation with nanocomposite under dark conditions result in visible rupture and leakage of cytoplasmic contents of E. coli which could be attributed to the combination between Ag and rGO nanocomposite leading to scratching of the bacterial cell membrane43.

Figure 6
figure 6

Antibacterial effect of CAP and 0.1% Ag/TiO2-1% rGO nanocomposite against E. coli (a) normal E. coli cell and its flagella (b) loss of membrane integrity after exposure to CAP, and (c) The destroyed E. coli cell with ruptured cell membrane and cytoplasm release after contact with 0.1% Ag/TiO2-1% rGO nanocomposite.

Removal of viruses

CAP showed virucidal action against ɸX174, achieving a 5.5 log10 decrease in 1 min and a 4.3 log10 removal of RoV in 5 min (Fig. 7). However, AdV was more resistant to the plasma treatment as complete inactivation (~ 6log10) reduction was achieved after 10 min exposure to CAP (Fig. 7). Interestingly, the time required by CAP to inactivate viruses was reduced by using 0.1% Ag/TiO2-1% rGO. For example, Fig. 7 shows that at 2 min of CAP exposure 0.8 log10 reduction of RoV was observed but with CAP treatment in the presence of 0.1% Ag/TiO2-1% rGO a complete inactivation of RoV at the same exposure time was found. Also, using CAP with 0.1% Ag/TiO2-1% rGO resulted in > 4.7log10 reduction of AdV at 2 min treatment, whereas < 1log10 could be reduced using only CAP at the same exposure time. More importantly, dark treatment (0.1% Ag/TiO2-1% rGO without CAP) showed non-significant removal of viruses after 10 min exposure (0.1–0.5 log10) which could be due to adsorption to the 0.1% Ag/TiO2-1% rGO and inactivation by the small percentage of Ag.

Figure 7
figure 7

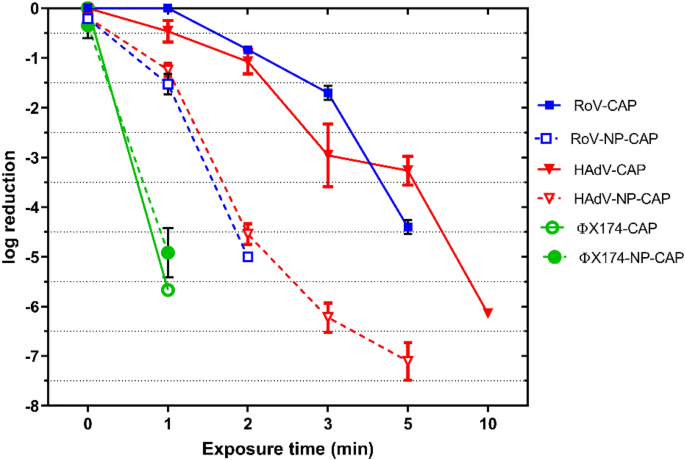

Inactivation of viruses suspended in distilled H2O by CAP and CAP-0.1% Ag/TiO2-1% rGO photo-composite. Zero time (no CAP) exposure is the dark inactivation. Results are an average of duplicate experiments and the error bars indicate the SEM.

Indeed, the high antiviral effect of CAP might be due to the chemical interactions between viral components and ROS and RNS. Peroxidation of the protein and reduction of infectivity can occur when active species interact with viral capsid protein. Furthermore, reactive species can cause damage to viral nucleic acid, resulting in impaired gene expression or full nucleic acid destruction. Plasma exposure may produce viral DNA-DNA crosslinking or DNA–protein complexes, causing bacteriophage DNA and protein damage. The inactivation of ɸX174 after short exposure to plasma could be attributed to the damage to the viral capsid. It has been found that the effect of plasma on bacteriophage lambda primarily resulted mainly from the damage of the viral capsid protein and only a less degree of damage to viral DNA. Using qPCR, only 0.4log10 and 1.1log10 removal of AdV was found by CAP and 0.1% Ag/TiO2-1% rGO with CAP, respectively in 10 min exposure (data not shown).

Direct incubation with NP without CAP was responsible for a reduction of ~ 0.12log10, ~ 0.2log10 and 0.5log10 of AdV, RoV and ɸX174, respectively. This minimal effect of dark inactivation was consistent with Liga et al.,16 who found a partial reduction of MS2 after incubation with nAg/TiO2 due to interactions of viral capsid amino acids with silver. However, it should be noted that in the present study 0.1% Ag/TiO2-1% rGO contains a small amount of Ag.

The enhanced inactivation by NP was also observed after CAP exposure (Fig. 7) due to the synergetic effect of CAP on photocatalytic oxidation activity of TiO2 instead of the antimicrobial property of nAg. Furthermore, silver doping in TiO2 has been found to promote charge separation, leading to more effective ROS production and, as a result, increased viral inactivation. Whereas, the degree of viral inactivation depends primarily on the number of viruses adsorbed on the TiO2 surface44.

The suggested CAP-Ag/TiO2-1% rGO action mechanism

A mechanism describing the degradation of phenol using Ag/TiO2-1% rGO photo-composite in the presence of CAP was suggested based on the results of phenol degradation and generated carriers scavenger experiments (Fig. 8). The produced UV light from CAP is capable of activating the TiO2 in the photo-composite. Figure 8a presents the transfer process of excited charge carriers, where the generated electrons transferred from the valence band (VB) to the conduction band (CB). The formed ℎ+ react with the adsorbed H2O and OH on the surface of the composite to generate OH radicals. On the other hand, 𝑒− transfer from CB to Ag then to rGO reduces the rate of 𝑒−/ℎ+ recombination and enhances the photocatalytic activity of the photo-composite. 𝑒− react with dissolved oxygen to produce superoxide radicals (O2•−), which react with ℎ+ and produce singlet oxygen (1O2) species. Also, O2 react with 𝑒− and H+ to form hydrogen peroxide (H2O2), which can form OH by the action of UV light. In addition to the CAP production for ROS and RNS, this system has a cocktail of radicals. Therefore and for simplicity, instead of following up the formation of these radicals, the contribution of most formed radicals can be determined using radical scavengers.

Figure 8
figure 8

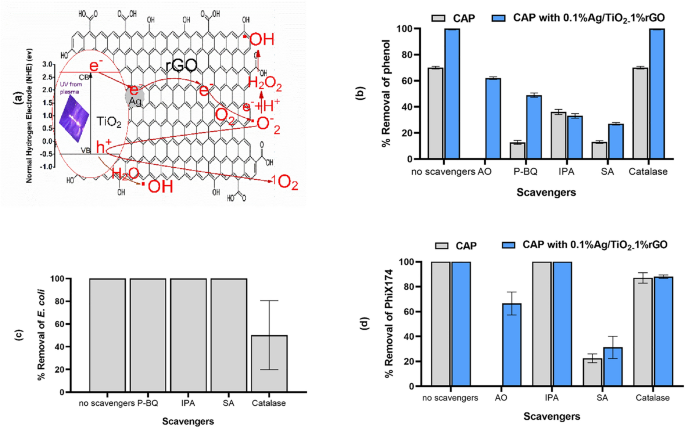

(a) Suggested photocatalytic mechanism for phenol degradation by CAP-Ag/TiO2-1% rGO photo-composite. Effect of scavengers on the removal efficiency of phenol (b), E. coli (c) and Phix174 (d). Data are an average of duplicate batch experiments and the error bars indicate the SEM.

The role of the reactive species generated in the CAP-0.1% Ag/TiO2-1% rGO process was investigated by using ammonium oxalate (AO), para-benzoquinone (p-BQ), sodium azide (SA), isopropyl alcohol (IPA), and catalase to trap ℎ+, O2•−1O2OH, and H2O2 respectively10,45,46. Phenol degradation using CAP only or CAP-0.1% Ag/TiO2-1% rGO in presence of scavengers is shown in Fig. 8b. In CAP only, the %removal of phenol decreased after adding p-BQ, IPA, and SA indicating that O2•−OH, and 1O2, respectively, have a major role in the phenol degradation by CAP only and the contribution of oxidizing species in the phenol degradation process follows the order: 1O2 = O2•−  > OH. There was no effect of H2O2 as the %removal of phenol did not change by adding catalase in case of CAP only or CAP-0.1% Ag/TiO2-1% rGO. The additional role of ℎ+1O2, and OH appeared by using the photo-composite and the contribution of these oxidizing species follows the order: 1O2 > OH > O2•−  > ℎ+. Singlet oxygen, therefore, plays the most important role in the phenol degradation in this process.

Recently, it was also proposed that adding graphene nanomaterials to TiO2 could enhance its antibacterial activity in darkness this might explain the complete inactivation of bacteria by Ag/TiO2-1% rGO photo-composite without CAP exposure47. Additionally, under the conditions described here, in the case of CAP treatment without photo-composite, H2O2 showed a high contribution to bacterial cell damage as has been investigated using catalase as H2O2 scavenger (Fig. 8c). Similarly, the discharge of H2O2 in plasma-activated water was shown to significantly contribute to bacterial inactivation before48. However, other reports found that CAP produced O and OH species that could either react with the bacterial outer membrane or easily penetrate the bacteria cells and damage them49.

The present study showed that 1O2 has a relatively high contribution to viral inactivation by CAP (Fig. 8d) within 1 min exposure. An identical course of action has been suggested in other reports. According to GuO et al.,50, bacteriophages can be inactivated by plasma through several actions of singlet 1O2. Additionally, the inactivation of feline calicivirus (FCV) and bacteriophages T4 was shown to be most effective by 1O2 which could alter the molecular mass of methionine and oxidizing histidine residues51. Here, we found that 1O2 and ℎ+ have significant contribution in viral inactivation by CAP-Ag/TiO2-1% rGO photo-composite (Fig. 8d), as the viral removal was decreased in the presence of SA (scavenger to 1O2) and AO which trap the ℎ+. The ℎ+ induce the oxidation processes and therefore various ROS are created. ROS emerging on the photocatalytic surfaces inactivates infectious agents including viruses52. Rather than full destruction of the capsid or nucleic acid, certain amino acids on capsid proteins could be oxidized, changing their affinity to host cell receptors. Also, the effect of H2O2 on viral inactivation was low which might be due to the use of non-enveloped viruses. This observation is consistent with other reports which found that the effect of H2O2 on naked viruses such as AdV and FCV is a secondary effect53,54.

Conclusions

This study demonstrated that photo-composite of 1% rGO ratio has the best phenol degradation rate in aqueous solution in the presence of CAP, compared also to pure TiO2 and Ag/ TiO2 photo-composite. The rGO has a synergistic effect with Ag and TiO2, this effect enhanced the photocatalytic performance of the Ag/TiO2 composite by the formation of a hybrid system that prolonged the lifetime of 𝑒− and ℎ+ followed by decreasing the charge separation rate. It was found that the photo-composite 0.1% Ag/TiO2-1% rGO at 400 °C has the highest efficiency towards the phenol degradation in the presence of CAP. This could be attributed to the more reduction of GO at this temperature which leads to an increase in charge transfer between TiO2 and rGO and consequently decreases the recombination rate of 𝑒−/ℎ+ pairs. The study found that the most important role in the phenol degradation was played by singlet oxygen in this process. Moreover, data revealed that 0.1% Ag/TiO2-1% rGO at 400 °C is a promising stable photocatalyst for long-term application in the presence of CAP process, ensuring the sustainability of the technology. Further, the photocatalytic microbial inactivation tests of bacteria and enteric viruses demonstrated excellent performance. Accordingly, 0.1% Ag/TiO2-1% rGO nanoparticles appear to be a promising candidate for environmental applications. Further research is needed to address the impact of water quality on the performance of composite nanoparticles in the presence of CAP treatment.

Material and methods

Synthesis of Ag/TiO2-rGO photo-composite

GO was prepared according to the modified Hummers method8 and Ag/TiO2 was prepared according to Badawy et al.22. The details of their preparation were described in the SI. To form 0.1 Ag/TiO2-GO, the GO suspension was dried at 80 °C with a mixture of titanium peroxide sol with the reduced AgNO3 solution in a rotary evaporator. This drying step is to allow strong attachment of Ag NPs and GO with titanium dioxide matrix (more details are in SI). The produced 0.1 Ag/TiO2-GO powder was thermally treated at 400 °C to reduce the GO and crystallize TiO2 simultaneously. The doping ratios of rGO was ranging from 0.5% to 5% rGO to Ag/TiO2. Finally, the effect of the calcination temperature was studied by heating the optimum doping ratio at 300 °C, 400 °C, and 500 °C.

Characterization of the prepared materials

The phase composition of the prepared materials was studied by X-ray diffraction (XRD) using diffractograms collected by PANalytical X’Pert Pro diffractometer with CuKα source (λ = 1.5406 Å). The morphology of the 0.1% Ag/TiO2-1% rGO photo-composite was investigated by high-resolution TEM model JEM 2100-HRTEM (JEOL, USA, Inc.) operated at an accelerating voltage of 200 kV. Raman spectra were acquired using a WITec Alpha 300 RA confocal Raman microscope (WITec GmbH, Ulm, Germany). The ultra violet-visible light (UV–Vis) diffuse reflectance spectra (DRS) were measured by a spectrometer (JASCO, Model V730, Japan) equipped with diffuse reflectance accessories, using BaSO4 as the reference sample,) and the photoluminescence (PL) was determined by spectrofluorometer (JASCO, Model FP-6500, Japan) at excitation wavelength 315 nm. The light source was a Xenon arc lamp (150 Watt).

Antimicrobial assay of 0.1% Ag/TiO2-1% rGO photo-composite by disc diffusion

The antimicrobial activity of 0.1% Ag/TiO2-1% rGO photo composite using disc diffusion assay was carried out for different Gram-negative, Gram-positive bacteria, and Candida albicans as described before55, more details can be found in SI.

Examination of E. coli by transmission electron microscopy

The effect of 0.1% Ag/TiO2-1% rGO photo-composite on E. coli was investigated. Approximately, 10 mL of ~ 105 CFU/mL fresh E.coli suspensions with and without 1 mg/mL of 0.1% Ag/TiO2-1% rGO photo-composite was prepared for TEM examination. One drop of each suspension was placed on a glow discharged formvar coated copper grid for a minute. The excess suspension was absorbed using filter paper, and the preparation was dried for 5 min in air. The samples were examined using high-resolution TEM.

The cold atmospheric plasma system

A high voltage probe (P5101) with a division ratio 1/1000 was connected to the plasma electrodes to measure the plasma voltage during the treatment and a digital multimeter (Sanwa Cd770) was used to measure the current in the circuit during the treatment. A digital oscilloscope (25 MHz) was used for monitoring the electrical parameters. The OES of the plasma was measured by a spectral measurement system (SMS-500) with a wavelength accuracy of ± 0.25 nm.

Phenol degradation

The performance of the prepared photocatalysts towards the degradation of phenol (Sigma-Aldrich) was investigated under CAP. For this purpose, phenol was selected as a model of chemical water pollutant. For the degradation experiments, 10 mL of 50 mg/L phenol solutions were placed in a glass Petri dish with internal diameters of 5.6 cm to have a water thickness of 3.6 mm. These are the optimum operation conditions, as mentioned before, that were determined in our previous work2. 10 mg of the prepared photocatalysts were magnetically stirred and filtered by a 0.2 μm syringe-driven filter unit (Thermo Fisher Scientific) before analysis. The experiments were performed in the batch system and the removal of phenol at definite treatment times was determined using high performance liquid chromatograph (HPLC, Agilent 1260, USA). The program analysis of the HPLC can be found in SI. Each point was measured triplet and the average was recorded. Moreover, nitrates and nitrites measurements were done by Ion chromatography (ICs 5000).

Effect of 0.1% Ag/TiO2-1% rGO photo-composite and CAP on bacterial strains

E. coli (2.6 × 105 CFU/mL) and S. aureus (1.0 × 105 CFU/mL) suspensions were inoculated in 10 mL of sterile distilled water. Each bacterial strain was directly exposed to CAP and another set was subjected to CAP in the presence of 10 mg/10 mL of 0.1% Ag/TiO2-1% rGO photo-composite. The bacterial strains were determined before and after treatment by tenfold serial dilution using the pour plate method. The colonies were expressed as a colony-forming unit (CFU/mL). All CAP or NPs treatments were conducted in duplicates batch experiments and bacterial quantification was performed.

Viruses and plasma treatment

Virus inactivation experiments

Nanoparticles suspension was freshly prepared in dH2O at a concentration of 1 mg/mL. Ten mL of the NPs suspension was spiked with ɸX174, AdV5, and RoV SA11 separately and mixed thoroughly within the reactor. The mixture was exposed to CAPs at different time courses (1, 2, 3, 5, and 10 min), and adjusted plasma voltage at approximately 3 kV with a gap distance of 1 mm. In order to know differences in viral inactivation, control groups were included for the comparison: (i) one set was incubated at dark without CAP, (ii) one set was subjected to plasma without NPs, and (iii) control group of viruses without neither NPs nor CAP.

Samples containing NPs were counted immediately or after centrifugation at 5000 xg for 10 min to remove the NPs and see if the presence of NPs interferes with viral enumeration. There was no clear difference between the two measures. So, the results presented here were acquired from direct enumeration of the samples without the removal of the nanoparticles. All CAP or CAP with NPs treatments were conducted in duplicates batch experiments and virus quantification was performed as explained below.

Model viruses

Somatic coliphages

ɸX174 was enumerated in water samples by double agar layer plaque test according to ISO 10705–2. E. coli DSM 13127 grown on tryptone broth was used as a host. In each assay one tube with 1 mL tryptone broth test tube was used as negative control and another tube with ~ 50PFU/ml of ɸX174 as a positive control.

Adenovirus

In order to examine the infectivity of Adenovirus type 5 in the treated water samples, the integrated cell culture qPCR (ICC-qPCR) assay has been used according to Hamza et al.57. Viral DNA extraction was performed by QIAamp DNA Mini Kit. SYBR Green qPCR was conducted to determine AdV copy numbers in the treated and control samples. QPCR was performed in a 20 µL reaction volume containing 5 µL of nucleic acid template and 0.25 µM each of forward and reverse AdV primers (AQ1 5′-GCCACGGTGGGGTTTCTAAACTT-3′ , AQ2 5′-GCCCCAGTGGTCTTACATGCACATC-3′) according to Heim et al.58. The reaction temperature was 95 °C for 10 min, and 45 cycles of 95 °C for 15 s followed by 60 °C for 1 min. Amplification, detection, and analysis were done by Rotorgene 6000 real time PCR system (Corbett Research, Sydney, Australia).

Rotavirus

Rotavirus SA11 was used as a model to RNA enteric viruses. Viral stock was prepared by propagation on MA-104 cells as described before2. Virus titration was performed by the end-point dilution assay TCID50. In order to quantitatively assess RoV in treated and non-treated water samples, the infected cells were examined under the microscope for the development of CPE, and the virus concentration was expressed as TCID50/mL.

Trapping of reactive species

The scavengers are used to investigate the role of reactive species generated in the CAP-0.1% Ag/TiO2-1% rGO process. AO, p-BQ, SA, IPA, and catalase are capable of trapping ℎ+, O2•−1O2, HO, and H2O2 respectively. All quenchers with a concentration of 100 mM except catalase (40 µg/10 mL) were added individually to the phenol solution or E. coli or Phix 174 and the CAP-photo-composite experiments were performed as mentioned previously. However, p-BQ displayed antiviral activity, therefore the role of O2•− in viral inactivation could not be studied.

Data availability

All data generated or analyzed during this study are included in this published article and its supplementary information file.
